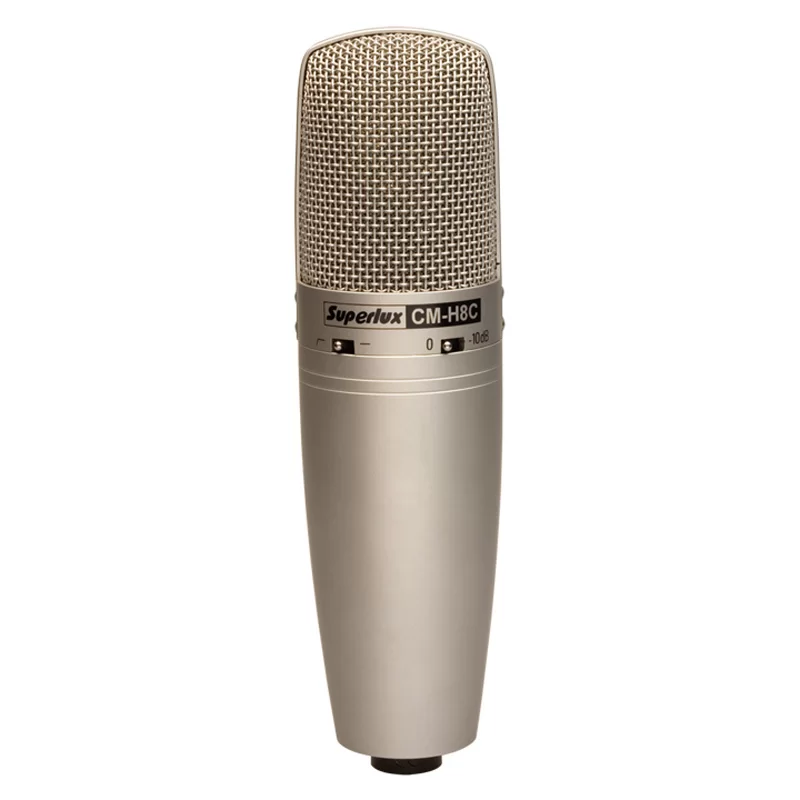

Superlux CMH8C Condenser Microphone

Specifications of Superlux CMH8C Condenser Microphone

Brand
SUPERLUX
SKU
125746674_NP-1034092572
Model
cmh8c
Mic Connectivity
Wired

Original price was: ₨22,900.00.Current price is: ₨18,200.00.

0 People watching this product now!

Compare

Add to wishlist

Description

Product details of Superlux CMH8C Condenser Microphone

Type: condenser microphone
Element: pressure gradient, FET preamplifier
Polar pattern: cardioid/omni/fig.8
Frequency response: 30~20000Hz
Sensitivity: -30.5/-35.4/-35.4dBV/Pa (28/17/17mV/Pa)
Rated impedance: 200 ohm
Minimum load impedance: 1000 ohm
Equivalent noise level: 14/18/18dB (A-weighted IEC/DIN651)
Max. SPL: 138/142/142dB (THD£ 0.5% 1000Hz)
Signal-to-noise ratio: 80/76/76dB
Dynamic range: 124dB
Power supply: 48V Phantom power (P48,IEC268-15/DIN 45596)
Current consumption: 4mA
Connector: 3 pins XLR gold-plated
Colour: Champagne-silver
Dimensions: Max.54mm(2.125″)x200mm(7.875″)
Weight: 567 g (20.1 oz)

SUPERLUX CMH8C – Platinum Series Large Diaphragm Studio Condenser Microphone Studio with 3 Pattern Dual Element Capsule – Omni, Cardioid or Figure of 8 – 10dB Pad and LF Roll-off Switch

The CM-H8C features a dual element 1″ diaphragm capsule. It can be switched for Omni, Cardioid or Figure “8” responses and has an external switch for the low-cut filter and a 10dB pad. It provides excellent performance in sensitivity, frequency response, dynamic range, noise and distortion. The CM-H8C is suitable for vocals, recording and high sound pressure levels.

Features:

Large 1″ diameter ultra-thin 3µm membrane gold-evaporated capsule.
Dual-element capsule permits the choice of three polar patterns selectable with an external switch.
Low noise transformer circuitry; flat and wide frequency response.
External low-frequency roll-off and 10dB pad attenuator switch.
