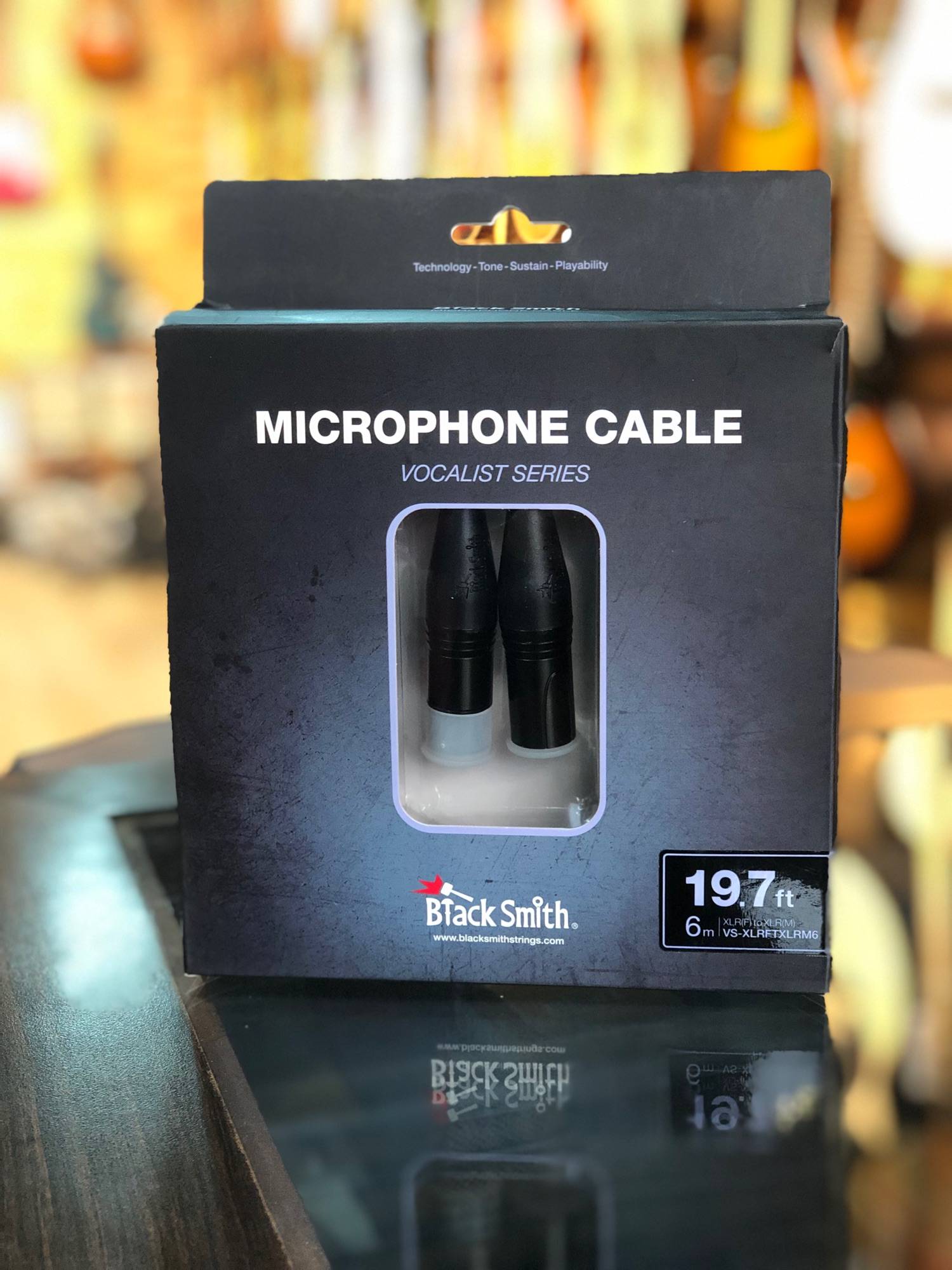

Blacksmith Vocalist Series Microphone Cable Xlr (Female) To XLR(Male) 6m

Specifications of Blacksmith Vocalist Series Microphone Cable Xlr (Female) To XLR(Male) 6m

  • Brand
    BLACKSMITH
  • SKU
    122453271_NP-1033309424

4,500.00

0 People watching this product now!

Description

Product details of Blacksmith Vocalist Series Microphone Cable Xlr (Female) To XLR(Male) 6m

  • Tip Rod and Handle: 1/4″ Plug with Gold plated copper alloy
  • Sleeve(Clamp) Terminal: Tin-plated steel
  • Insulation: Thermoplastic
  • Dielectric Withstanding Voltage:500Vac
  • Insulation Resistance: 20 Mega ohms
  • Operation Temperature:-20°C TO
  • +65°C
  • Cable specs for Instrument and flat patch cable:
  • Cable: 22awg OFC+SP64*0.1 OFC
  • Conductor size: 22awg OFC
  • Construction(No./mm):170.16 OFC
  • Diameter: 0.52
  • Insulation Thickness:0.6MM
  • Diameter:1.7
  • Inner Jacket Thickness:0.3 MM
  • Diameter:2.3MM
  • Shield-Diameter:2.8MM
  • Jacket Thickness:1.5MM
  • Diameter:6.0MM
  • Maximum conductor resistance: 26.9= (OHM/KM)
  • Capacitance (1kHz): Approx.60(pF/m)
  • Insulation Material: PE
  • Special Inner Shield: PVC
  • Outer Shield: OFC TWINE SHIELD
  • Jacket: PVC OD6.0mm
  • DE Resistance: Conductor 5.5 ohm/100m Shield 2.6
  • ohm/100m
