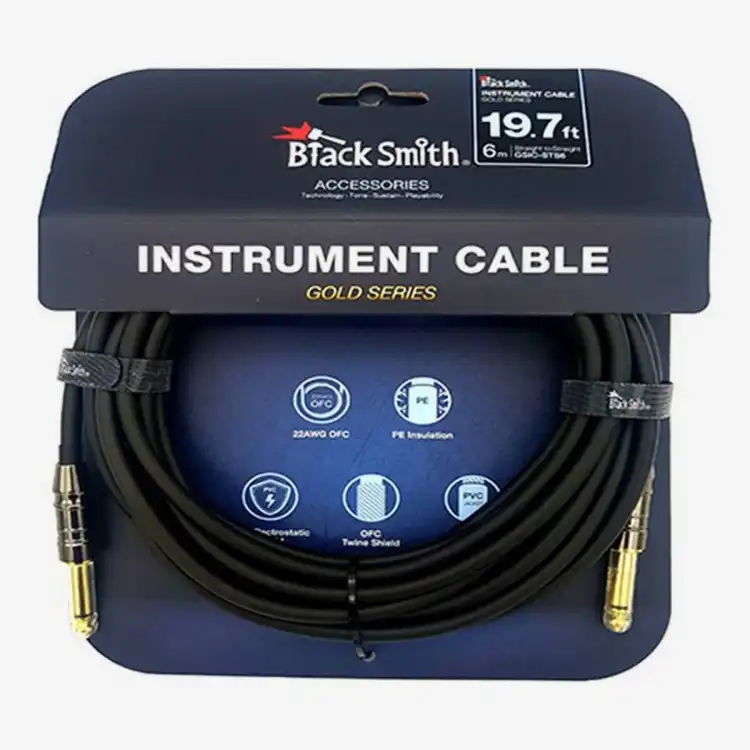

Blacksmith Gold Series Instrument Cable Straight To Straight 6m
Specifications of Blacksmith Gold Series Instrument Cable Straight To Straight 6m
- BrandBLACKSMITH
- SKU118857988_NP-1032559448
₨3,260.00
0
People watching this product now!
Description
Product details of Blacksmith Gold Series Instrument Cable Straight To Straight 6m
- Tip Rod and Handle: 1/4″ Plug with Gold plated copper alloy
- Sleeve(Clamp) Terminal: Tin-plated steel
- Insulation: Thermoplastic
- Dielectric Withstanding Voltage:500Vac
- Insulation Resistance: 20 Mega ohms
- Operation Temperature:-20°C TO
- +65°C
- Cable specs for Instrument and flat patch cable:
- Cable: 22awg OFC+SP64*0.1 OFC
- Conductor size: 22awg OFC
- Construction(No./mm):170.16 OFC
- Diameter: 0.52
- Insulation Thickness:0.6MM
- Diameter:1.7
- Inner Jacket Thickness:0.3 MM
- Diameter:2.3MM
- Shield-Diameter:2.8MM
- Jacket Thickness:1.5MM
- Diameter:6.0MM
- Maximum conductor resistance: 26.9= (OHM/KM)
- Capacitance (1kHz): Approx.60(pF/m)
- Insulation Material: PE
- Special Inner Shield: PVC
- Outer Shield: OFC TWINE SHIELD
- Jacket: PVC OD6.0mm
- DE Resistance: Conductor 5.5 ohm/100m Shield 2.6
- ohim/100m
